- 產品概述
一、產品概述：

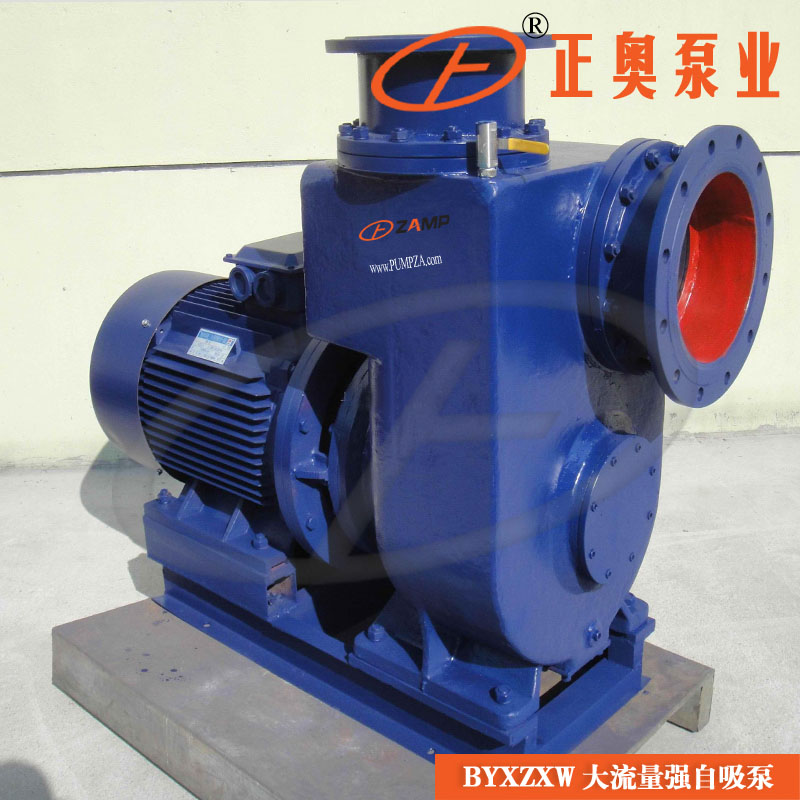

BYXZXW大流量自吸泵|強自吸泵是正奧公司根據市場需求而開發的一種全新結構的節能型自吸泵產品。自吸時間長、效率低等問題，具有吸程高、自吸時間短、使用效率高、節能效果顯著、運行更平穩，使用壽命長等優點。普通自吸泵排污泵在吸程3米的工況下需要2分鐘時間；強自吸泵只需要40秒就能把液體吸上來。強自吸泵集自吸和無堵塞排污于一體，采用軸向回流外混式，并通過泵體、葉輪流道的獨特設計，即不需要安裝底閥和灌引水，又可吸排含有顆粒固體和纖維等雜質的液體，可廣泛適用于市政排污程、河塘養殖、輕工、造紙、食品、化工、電業、纖維、漿料和混合懸浮等化工介質最理想的自吸無堵塞排污泵。
二、產品特點：
1、強自吸泵結構緊湊，該系列自吸泵為臥式結構，泵一體、外型美觀、占地面積少。與普通自吸泵比較，占地面積減少30%。如采用IP54戶外電機則無需泵房，可置于戶外使用。
2、該強自吸泵可采用分體式與直聯式及便拆式三種結構，按類型又分為清水型、污水型兩大系列，與國內同類產品相比，具有結構簡單緊湊、振動小，自吸性能好、排污能力強、高效節能、使用維修方便等特點，在自吸泵系列產品中屬國內首創。各項技術性能指標居國內領先，達到國際先進水平，具有廣闊的應用市場和發展前景。

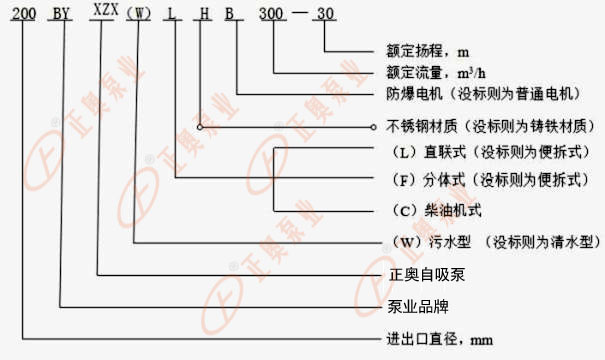

三、型號意義：
例如200BYXZXWLHB300-30
200-泵吸入口徑 BYXZXW-正奧牌強自吸排污泵 （沒標W則為清水型）L-直連式、F-分體式、C-柴油機式（沒標則為便拆式）BC-便拆裝式、H-不銹鋼材質（沒標則為鑄鐵材質）B-防爆電機（沒標則為普通電機）300-額定流量（m3/h）30-額定揚程
四、使用范圍：
1、 環境溫度≤50℃，介質溫度≤80℃特殊要求可達200 ℃ 。
2、 介質PH值鑄鐵材質為6～9，不銹鋼為2～13。
3、 污水型使用介質重度不超過1240kg/m3。
4、 自吸高度不能超過規定值5～7米 ，吸入管長度為≤10m。
5、 通過能力懸浮顆粒直徑約為泵口徑的20%，纖維長度泵口徑的5倍

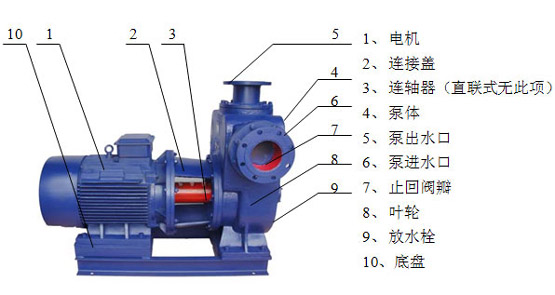

五、產品結構：
六、性能參數：
|
序號 |
型 號 |
流量 |
揚程 |
效率 |
功率 |
轉速n |
汽蝕余量m |
自吸高度m |
自吸時間(S/5m) |
重量 |
|
1 |
100BYXZXW80-10-4.2-4 |
80 |
10 |
68.1 |
4 |
1450 |
2.0 |
5.5 |
100 |
230 |
|
2 |
100BYXZXW100-12-5.5-4 |
100 |
12 |
74.3 |
5.5 |
1450 |
2.5 |
6.0 |
100 |
260 |
|
3 |
100BYXZXW100-15-7.5-4 |
100 |
15 |
68.1 |
7.5 |
1450 |
2.5 |
6.0 |
100 |
280 |
|
4 |
100BYXZXW100-20-11-4 |
100 |
20 |
66.1 |
11 |
1450 |
2.5 |
6.5 |
100 |
320 |
|
5 |
100BYXZXW100-25-15-4 |
100 |
25 |
60.6 |
15 |
1450 |
2.5 |
7.0 |
100 |
330 |
|
6 |
100BYXZXW100-30-18.5-4 |
100 |
30 |
58.9 |
18.5 |
1450 |
2.5 |
7.0 |
100 |
360 |
|
7 |
100BYXZXW100-40-22-2 |
100 |
40 |
66.1 |
22 |
2900 |
2.5 |
7.0 |
100 |
360 |
|
8 |
100BYXZXW100-50-30-2 |
100 |
50 |
60.6 |
30 |
2900 |
2.5 |
7.0 |
100 |
440 |
|
9 |
100BYXZXW100-60-37-2 |
100 |
60 |
63.1 |
37 |
2900 |
2.5 |
7.0 |
100 |
450 |
|
10 |
100BYXZXW100-70-45-2 |
100 |
70 |
60.6 |
45 |
2900 |
2.5 |
7.0 |
100 |
530 |
|
11 |
100BYXZXW100-80-45-2 |
100 |
80 |
64.6 |
45 |
2900 |
2.5 |
5.5 |
100 |
540 |
|
12 |
150BYXZXW150-10-7.5-4 |
150 |
10 |
68.1 |
7.5 |
1450 |
2.5 |
6.0 |
100 |
330 |
|
13 |
150BYXZXW150-15-11-4 |
150 |
15 |
69.7 |
11 |
1450 |
2.5 |
6.0 |
100 |
340 |
|
14 |
150BYXZXW50-20-15-4 |
150 |
20 |
68.1 |
15 |
1450 |
2.5 |
6.5 |
100 |
370 |
|
15 |
150BYXZXW150-25-18.5-4 |
150 |
25 |
69.0 |
18.5 |
1450 |
2.5 |
6.5 |
100 |
420 |
|
16 |
150BYXZXW150-30-22-4 |
150 |
30 |
69.7 |
22 |
1450 |
2.5 |
7.0 |
100 |
480 |
|
17 |
150BYXZXW150-35-30-4 |
150 |
35 |
63.6 |
30 |
1450 |
2.5 |
7.0 |
100 |
660 |
|
18 |
150BYXZXW150-40-37-4 |
150 |
40 |
63.6 |
37 |
1450 |
2.5 |
7.0 |
100 |
680 |
|
19 |
150BYXZXW150-50-45-4 |
150 |
50 |
67.2 |
45 |
1450 |
2.5 |
7.0 |
100 |
720 |
|
20 |
150BYXZXW150-40-37-2 |
150 |
40 |
63.1 |
37 |
2900 |
2.5 |
7.0 |
100 |
480 |
|
21 |
150BYXZXW150-50-45-2 |
150 |
50 |
60.6 |
45 |
2900 |
2.5 |
7.0 |
100 |
540 |
|
22 |
150BYXZXW150-65-55-2 |
150 |
65 |
64.4 |
55 |
2900 |
2.5 |
7.0 |
100 |
720 |
|
23 |
150BYXZXW150-80-75-2 |
150 |
80 |
62.3 |
75 |
2900 |
2.5 |
7.0 |
100 |
880 |
|
24 |
150BYXZXW200-11-11-4 |
200 |
11 |
68.1 |
11 |
1450 |
2.5 |
5.5 |
100 |
340 |
|
25 |
150BYXZXW200-15-15-4 |
200 |
15 |
68.1 |
15 |
1450 |
2.5 |
6.00 |
100 |
370 |
|
26 |
150BYXZXW200-18-18.5-4 |
200 |
18 |
66.3 |
18.5 |
1450 |
2.5 |
6.0 |
100 |
420 |
|
27 |
150BYXZXW200-22-22-4 |
200 |
22 |
68.1 |
22 |
1450 |
2.5 |
6.5 |
100 |
480 |
|
28 |
150BYXZXW200-27-30-4 |
200 |
27 |
65.4 |
30 |
1450 |
2.5 |
7.0 |
100 |
660 |
|
29 |
150BYXZXW200-32-37-4 |
200 |
32 |
62.8 |
37 |
1450 |
2.5 |
7.0 |
100 |
680 |
|
30 |
150BYXZXW200-40-45-4 |
200 |
40 |
63.7 |
45 |
1450 |
2.5 |
7.0 |
100 |
720 |
|
31 |
150BYXZXW200-50-55-4 |
200 |
50 |
65.2 |
45 |
1450 |
2.5 |
7.0 |
100 |
860 |
|
32 |
150BYXZXW200-40-45-2 |
200 |
40 |
64.6 |
45 |
2900 |
2.5 |
7.0 |
100 |
540 |
|
33 |
150BYXZXW200-50-55-2 |
200 |
50 |
66.1 |
55 |
2900 |
2.5 |
7.0 |
100 |
720 |
|
34 |
15BYXZXW200-65-75-2 |
200 |
65 |
63.0 |
75 |
2900 |
2.5 |
7.0 |
100 |
880 |
|
35 |
150BYXZXW200-80-90-2 |
200 |
80 |
64.6 |
90 |
2900 |
2.5 |
7.0 |
100 |
950 |
|
36 |
150BYXZXW250-50-55-4 |
250 |
50 |
69.7 |
55 |
1450 |
2.5 |
7.0 |
100 |
860 |
|
37 |
200BYXZXW250-12-15-6 |
250 |
12 |
68.1 |
15 |
960 |
3.0 |
5.5 |
120 |
480 |
|
38 |
200BYXZXW250-15-18-6 |
250 |
15 |
69.0 |
18 |
960 |
3.0 |
6.0 |
120 |
520 |
|
39 |
200BYXZXW250-20-22-4 |
250 |
20 |
72.9 |
22 |
1450 |
3.0 |
6.0 |
120 |
620 |
|
40 |
200BYXZXW250-25-30-4 |
250 |
25 |
66.8 |
30 |
1450 |
3.0 |
6.0 |
120 |
710 |
|
41 |
200BYXZXW250-30-37-4 |
250 |
30 |
69.3 |
32 |
1450 |
3.0 |
6.5 |
120 |
820 |
|
42 |
200BYXZXW250-40-45-4 |
250 |
40 |
71.2 |
45 |
1450 |
3.0 |
6.5 |
120 |
850 |
|
43 |
200BYXZXW250-45-55-4 |
250 |
45 |
69.7 |
55 |
1450 |
3.0 |
7.0 |
120 |
920 |
|
44 |
200BYXZXW250-55-75-4 |
250 |
55 |
62.4 |
75 |
1450 |
3.0 |
7.0 |
120 |
980 |
|
45 |
200BYXZXW250-65-90-4 |
250 |
65 |
65.6 |
90 |
1450 |
3.0 |
7.0 |
120 |
1030 |
|
46 |
200BYXZXW300-10-15-6 |
300 |
10 |
72.7 |
15 |
960 |
3.0 |
5.5 |
120 |
480 |
|
47 |
200BYXZXW300-12-18.5-6 |
300 |
12 |
70.7 |
18.5 |
960 |
3.0 |
6.0 |
120 |
520 |
|
48 |
200BYXZXW300-15-22-4 |
300 |
15 |
74.3 |
22 |
1450 |
3.0 |
6.0 |
120 |
620 |
|
49 |
200BYXZXW300-20-30-4 |
300 |
20 |
72.7 |
30 |
1450 |
3.0 |
6.5 |
120 |
710 |
|
50 |
200BYXZXW300-25-37-4 |
300 |
25 |
73.6 |
37 |
1450 |
3.0 |
6.5 |
120 |
820 |
|
51 |
200BYXZXW300-30-45-4 |
300 |
30 |
72.7 |
45 |
1450 |
3.0 |
6.5 |
120 |
850 |
|
52 |
200BYXZXW300-40-55-4 |
300 |
40 |
74.3 |
55 |
1450 |
3.0 |
7.0 |
120 |
920 |
|
53 |
200BYXZXW300-50-75-4 |
300 |
50 |
68.1 |
75 |
1450 |
3.0 |
7.0 |
120 |
980 |
|
54 |
200BYXZXW300-55-75-4 |
300 |
55 |
74.9 |
75 |
1450 |
3.0 |
7.0 |
120 |
980 |
|
序號 |
型 號 |
流量 |
揚程 |
效率 |
功率 |
轉速n |
汽蝕余量m |
自吸高度m |
自吸時間(S/5m) |
重量 |
|
55 |
200BYXZXW300-60-90-4 |
300 |
60 |
68.1 |
90 |
1450 |
3.0 |
7.0 |
120 |
1030 |
|
56 |
200BYXZXW350-8-15-6 |
350 |
8 |
63.6 |
15 |
960 |
3.0 |
5.0 |
120 |
580 |
|
57 |
200BYXZXW350-11-18.5-6 |
350 |
11 |
70.9 |
18.5 |
960 |
3.0 |
5.5 |
120 |
620 |
|
58 |
200BYXZXW350-13-22-4 |
350 |
13 |
70.4 |
22 |
1450 |
3.0 |
5.5 |
120 |
620 |
|
59 |
20BYXZXW350-17-30-4 |
350 |
17 |
67.6 |
30 |
1450 |
3.0 |
6.0 |
120 |
710 |
|
60 |
200BYXZXW350-22-37-4 |
350 |
22 |
66.7 |
37 |
1450 |
3.0 |
6.5 |
120 |
820 |
|
61 |
200BYXZXW350-28-45-4 |
350 |
28 |
69.8 |
45 |
1450 |
3.0 |
6.5 |
120 |
850 |
|
62 |
200BYXZXW350-35-55-4 |
350 |
35 |
71.4 |
55 |
1450 |
3.0 |
7.0 |
120 |
920 |
|
63 |
200BYXZXW350-42-75-4 |
350 |
42 |
66.8 |
75 |
1450 |
3.0 |
7.0 |
120 |
980 |
|
64 |
200BYXZXW350-50-90-4 |
350 |
50 |
66.2 |
90 |
1450 |
3.0 |
7.0 |
120 |
1030 |
|
65 |
200BYXZXW350-60-110-4 |
350 |
60 |
65.0 |
110 |
1450 |
3.0 |
7.0 |
120 |
1120 |
|
66 |
200BYXZXW400-9-18.5-6 |
400 |
9 |
66.3 |
18.5 |
960 |
3.0 |
5.0 |
120 |
620 |
|
67 |
200BYXZXW400-11-22-6 |
400 |
11 |
68.1 |
22 |
960 |
3.0 |
5.5 |
120 |
710 |
|
68 |
200BYXZXW400-15-30-4 |
400 |
15 |
68.1 |
30 |
1450 |
3.0 |
6.0 |
120 |
710 |
|
69 |
200BYXZXW400-20-37-4 |
400 |
20 |
69.3 |
37 |
1450 |
3.0 |
6.5 |
120 |
820 |
|
70 |
200BYXZXW400-25-45-4 |
400 |
25 |
71.2 |
45 |
145, 0, |
6.5 |
120 |
850 |
|
|
71 |
200BYXZXW400-30-55-4 |
400 |
30 |
69.9 |
55 |
1450 |
3.0 |
7.0 |
120 |
920 |
|
72 |
200BYXZXW400-40-75-4 |
400 |
40 |
68.4 |
75 |
1450 |
3.0 |
7.0 |
120 |
980 |
|
73 |
200BYXZXW400-48-90-4 |
400 |
48 |
68.4 |
90 |
1450 |
3.0 |
7.0 |
120 |
1030 |
|
74 |
200BYXZXW400-55-110-4 |
400 |
55 |
64.1 |
110 |
1450 |
3.0 |
7.0 |
120 |
1120 |
|
75 |
200BYXZXW400-65-132-4 |
400 |
65 |
63.1 |
132 |
1450 |
3.0 |
7.0 |
120 |
1160 |
|
76 |
250BYXZXW500-12-30-6 |
500 |
12 |
64.1 |
30 |
960 |
4.0 |
5.5 |
150 |
1070 |
|
77 |
250BYXZXW500-15-37-4 |
500 |
15 |
65.0 |
37 |
1450 |
4.0 |
6.0 |
150 |
1070 |
|
78 |
25BYXZXW500-20-45-4 |
500 |
20 |
71.2 |
45 |
1450 |
4.0 |
6.0 |
150 |
1110 |
|
79 |
250BYXZXW500-25-55-4 |
500 |
25 |
72.9 |
55 |
1450 |
4.0 |
6.5 |
150 |
1220 |
|
80 |
250BYXZXW500-30-75-4 |
500 |
30 |
64.1 |
75 |
1450 |
4.0 |
6.5 |
150 |
1310 |
|
81 |
250BYXZXW500-35-90-4 |
500 |
35 |
62.3 |
90 |
1450 |
4.0 |
6.5 |
150 |
1360 |
|
82 |
250BYXZXW500-40-90-4 |
500 |
40 |
71.2 |
90 |
1450 |
4.0 |
6.5 |
150 |
1360 |
|
83 |
250BYXZXW600-10-30-6 |
600 |
10 |
64.1 |
30 |
960 |
4.0 |
5.5 |
150 |
1070 |
|
84 |
250BYXZXW600-13-37.0-4 |
600 |
13 |
67.6 |
37 |
1450 |
4.0 |
6.0 |
150 |
1070 |
|
85 |
250BYXZXW600-16-45.0-4 |
600 |
16 |
68.4 |
45 |
1450 |
4.0 |
6.0 |
150 |
1110 |
|
86 |
250BYXZXW600-22-55.0-4 |
600 |
22 |
76.9 |
55 |
1450 |
4.0 |
6.5 |
150 |
1220 |
|
87 |
250BYXZXW600-27-75.0-4 |
600 |
27 |
69.2 |
75 |
1450 |
4.0 |
6.5 |
150 |
1310 |
|
88 |
250BYXZXW600-32-90.0-4 |
600 |
32 |
68.4 |
90 |
1450 |
4.0 |
6.5 |
150 |
1360 |
|
89 |
250BYXZXW600-40-110-4 |
600 |
40 |
69.9 |
110 |
1450 |
4.0 |
6.5 |
150 |
1450 |
|
90 |
250BYXZXW600-48-132-4 |
600 |
48 |
69.9 |
132 |
1450 |
4.0 |
6.5 |
150 |
1490 |
|
91 |
250BYXZXW600-55-160-4 |
600 |
55 |
66.1 |
160 |
1450 |
4.0 |
6.5 |
150 |
1550 |
|
92 |
300BYXZXW800-10-37-6 |
800 |
10 |
69.3 |
37 |
960 |
5.0 |
5.5 |
150 |
1260 |
|
93 |
300BYXZXW800-13-45-6 |
800 |
13 |
74.1 |
45 |
960 |
5.0 |
5.5 |
150 |
1350 |
|
94 |
300BYXZXW800-16-55-6 |
800 |
16 |
74.6 |
55 |
960 |
5.0 |
5.5 |
150 |
1390 |
|
95 |
300BYXZXW800-20-75-4 |
800 |
20 |
68.4 |
75 |
1450 |
5.0 |
6.0 |
150 |
1350 |
|
96 |
300BBYXZXW800-26-90-4 |
800 |
26 |
74.1 |
90 |
1450 |
5.0 |
6.5 |
150 |
1390 |
|
97 |
300BYXZXW800-32-110-4 |
800 |
32 |
74.6 |
110 |
1450 |
5.0 |
6.5 |
150 |
1480 |
|
98 |
300BYXZXW800-37-132-4 |
800 |
37 |
71.9 |
132 |
1450 |
5.0 |
6.5 |
150 |
1520 |
|
99 |
300BBYXZXW800-42-160-4 |
800 |
42 |
67.3 |
160 |
1450 |
5.0 |
6.5 |
150 |
1580 |
|
100 |
300BYXZXW1000-8-37-6 |
1000 |
8 |
69.3 |
37 |
960 |
5.0 |
5.5 |
150 |
1260 |
|
101 |
300BYXZXW1000-10-45-6 |
1000 |
10 |
71.2 |
45 |
960 |
5.0 |
5.5 |
150 |
1350 |
|
102 |
300BYXZXW000-12-55-6 |
1000 |
12 |
69.9 |
55 |
960 |
5.0 |
6.0 |
150 |
1390 |
|
103 |
300BYXZXW1000-16-75-4 |
1000 |
16 |
68.4 |
75 |
1450 |
5.0 |
6.0 |
150 |
1350 |
|
104 |
300BYXZXW1000-20-90-4 |
1000 |
20 |
71.2 |
90 |
1450 |
5.0 |
6.5 |
150 |
1390 |
|
105 |
300BYXZXW1000-25-110-4 |
1000 |
25 |
72.9 |
110 |
1450 |
5.0 |
6.5 |
150 |
1480 |
|
106 |
300BYXZXW1000-30-132-4 |
1000 |
30 |
72.9 |
132 |
1450 |
5.0 |
6.5 |
150 |
1520 |
|
107 |
300BYXZXW1000-35-160-4 |
1000 |
35 |
70.1 |
160 |
1450 |
5.0 |
6.5 |
150 |
1580 |
|
序號 |
型 號 |
流量 |
揚程 |
效率 |
功率 |
轉速n |
汽蝕余量m |
自吸高度m |
自吸時間(S/5m) |
重量 |
|
108 |
350BYXZXW1200-7-37-6 |
1200 |
7 |
72.8 |
37 |
960 |
5.0 |
5.5 |
150 |
1280 |
|
109 |
350BYXZXW1200-9-45-6 |
1200 |
9 |
76.9 |
45 |
960 |
5.0 |
5.5 |
150 |
1370 |
|
110 |
350BYXZXW1200-11-55-6 |
1200 |
11 |
66.7 |
55 |
960 |
5.0 |
5.5 |
150 |
1420 |
|
111 |
350BYXZXW1200-13-75-4 |
1200 |
13 |
72.7 |
75 |
1450 |
5.0 |
6.0 |
150 |
1370 |
|
112 |
350BYXZXW1200-17-90-4 |
1200 |
17 |
76.9 |
90 |
1450 |
5.0 |
6.0 |
150 |
1420 |
|
113 |
350BYXZXW1200-22-110-4 |
1200 |
22 |
75.8 |
110 |
1450 |
5.0 |
6.5 |
150 |
1510 |
|
114 |
350BYXZXW1200-26-132-4 |
1200 |
26 |
72.1 |
132 |
1450 |
5.0 |
6.5 |
150 |
1540 |
|
115 |
350BYXZXW1200-30-160-4 |
1200 |
30 |
67.3 |
160 |
1450 |
5.0 |
6.5 |
150 |
1620 |
|
116 |
350BYXZXW1200-35-200-4 |
1200 |
35 |
71.5 |
200 |
1450 |
5.0 |
6.5 |
150 |
1710 |
|
117 |
350BYXZXW1500-5.5-37-6 |
1500 |
5.5 |
74.8 |
37 |
960 |
5.0 |
6.5 |
150 |
1280 |
|
118 |
350BYXZXW1500-7-45-6 |
1500 |
7 |
78.7 |
45 |
960 |
5.0 |
5.5 |
150 |
1370 |
|
119 |
350BYXZXW1500-9-55-6 |
1500 |
9 |
70.5 |
55 |
960 |
5.0 |
5.5 |
150 |
1420 |
|
120 |
350BYXZXW1500-11-75-4 |
1500 |
11 |
74.8 |
75 |
1450 |
5.0 |
6.0 |
150 |
1370 |
|
121 |
350BYXZXW1500-14-90-4 |
1500 |
14 |
74.3 |
90 |
1450 |
5.0 |
6.0 |
150 |
1420 |
|
122 |
350BYXZXW1500-17-110-4 |
1500 |
17 |
74.3 |
110 |
1450 |
5.0 |
6.5 |
150 |
1510 |
|
123 |
350BYXZXW1500-20-132-4 |
1500 |
20 |
72.9 |
132 |
1450 |
5.0 |
6.5 |
150 |
1540 |
|
124 |
350BYXZXW1500-25-160-4 |
1500 |
25 |
75.1 |
160 |
1450 |
5.0 |
6.5 |
150 |
1620 |
|
125 |
350BYXZXW1500-30-200-4 |
1500 |
30 |
72.1 |
200 |
1450 |
5.0 |
6.5 |
150 |
1710 |
|
126 |
350BYXZXW1500-35-220-4 |
1500 |
35 |
76.5 |
220 |
1450 |
5.0 |
6.5 |
150 |
1820 |
|
127 |
400BYXZXW1800-10-90-6 |
1800 |
10 |
64.1 |
90 |
960 |
5.0 |
5.5 |
150 |
1650 |
|
128 |
400BYXZXW1800-12-110-6 |
1800 |
12 |
63.0 |
110 |
960 |
5.0 |
6.0 |
150 |
1750 |
|
129 |
400BYXZXW1800-15-132-6 |
1800 |
15 |
65.6 |
132 |
960 |
5.0 |
6.5 |
150 |
1860 |
|
130 |
400BYXZXW1800-18-160-4 |
1800 |
18 |
64.9 |
160 |
960 |
5.0 |
6.5 |
150 |
1920 |
|
131 |
400BYXZXW1800-24-200-6 |
1800 |
24 |
69.2 |
200 |
960 |
5.0 |
6.5 |
150 |
2100 |
|
132 |
400BYXZXW1800-26-220-6 |
1800 |
26 |
68.2 |
220 |
960 |
5.0 |
6.5 |
150 |
2200 |
|
133 |
400BYXZXW1800-30-250-6 |
1800 |
30 |
69.2 |
250 |
960 |
5.0 |
6.5 |
150 |
2500 |
|
134 |
400BYXZXW1800-32-280-4 |
1800 |
32 |
68.2 |
280 |
1450 |
5.0 |
6.5 |
150 |
2400 |
|
135 |
400BYXZXW1800-35-315-4 |
1800 |
35 |
64.1 |
315 |
1450 |
5.0 |
6.5 |
150 |
2550 |
|
136 |
400BYXZXW2000-9-90-6 |
2000 |
9 |
64.1 |
90 |
960 |
5.0 |
5.5 |
150 |
1650 |
|
137 |
400BYXZXW2000-11-110-6 |
2000 |
11 |
64.1 |
110 |
960 |
5.0 |
6.0 |
150 |
1750 |
|
138 |
400BYXZXW2000-14-132-6 |
2000 |
14 |
68 |
132 |
960 |
5.0 |
6.0 |
150 |
1860 |
|
139 |
400BYXZXW2000-17-160-6 |
2000 |
17 |
68.1 |
160 |
960 |
5.0 |
6.5 |
150 |
1920 |
|
140 |
400BYXZXW2000-22-200-6 |
2000 |
22 |
70.5 |
200 |
960 |
5.0 |
6.5 |
150 |
2100 |
|
141 |
400BYXZXW2000-24-220-6 |
2000 |
24 |
69.9 |
220 |
960 |
5.0 |
6.5 |
150 |
2200 |
|
142 |
400BYXZXW2000-28-250-6 |
2000 |
28 |
71.8 |
250 |
960 |
5.0 |
6.5 |
150 |
2500 |
|
143 |
400BYXZXW2000-30-280-4 |
2000 |
30 |
71.2 |
280 |
1450 |
5.0 |
6.5 |
150 |
2400 |
|
144 |
400BYXZXW2000-32-315-4 |
2000 |
32 |
65.1 |
315 |
1450 |
5.0 |
6.5 |
150 |
2550 |
|
145 |
500BYXZXW2200-8-90-6 |
2200 |
8 |
62.7 |
90 |
960 |
5.0 |
5.5 |
150 |
1680 |
|
146 |
500BYXZXW2200-10-110-6 |
2200 |
10 |
64.1 |
110 |
960 |
5.0 |
5.5 |
150 |
1780 |
|
147 |
500BYXZXW2200-12-132-6 |
2200 |
12 |
64.1 |
132 |
960 |
5.0 |
6.0 |
150 |
1880 |
|
148 |
500BYXZXW2200-15-160-6 |
2200 |
15 |
66.1 |
160 |
960 |
5.0 |
6.5 |
150 |
1950 |
|
149 |
500BYXZXW2200-20-200-6 |
2200 |
20 |
70.5 |
200 |
960 |
5.0 |
6.5 |
150 |
2130 |
|
150 |
500BYXZXW2200-22-220-6 |
2200 |
22 |
70.5 |
220 |
960 |
5.0 |
6.5 |
150 |
2230 |
|
151 |
500BBYXZXW2200-25-250-6 |
2200 |
25 |
70.5 |
250 |
960 |
5.0 |
6.5 |
150 |
2530 |
|
152 |
500BYXZXW2200-28-280-4 |
2200 |
28 |
70.2 |
280 |
1450 |
5.0 |
6.5 |
150 |
2450 |
|
153 |
500BYXZXW2200-30-315-4W |
2200 |
30 |
69.6 |
315 |
1450 |
5.0 |
6.5 |
150 |
2600 |
|
需要更大流量的型號請來電告知可根據要求定做；因?yàn)楣灸ゾ吣壳爸挥幸陨闲吞枺凰猿罅髁康纳a(chǎn)周期時間在20天左右。 |
||||||||||
- 上一個產品： FPZ型聚丙烯塑料自吸泵
- 下一個產品： ZW型自吸式排污泵
CYZ-AL型直
CYZ-AL型直聯式自吸油泵屬自吸式
CYZ-A型軸聯
CYZ-A型軸聯式自吸油泵適用于石油
JMZ型不銹鋼自
JMZ型不銹鋼自吸泵|酒泵本泵具有結
